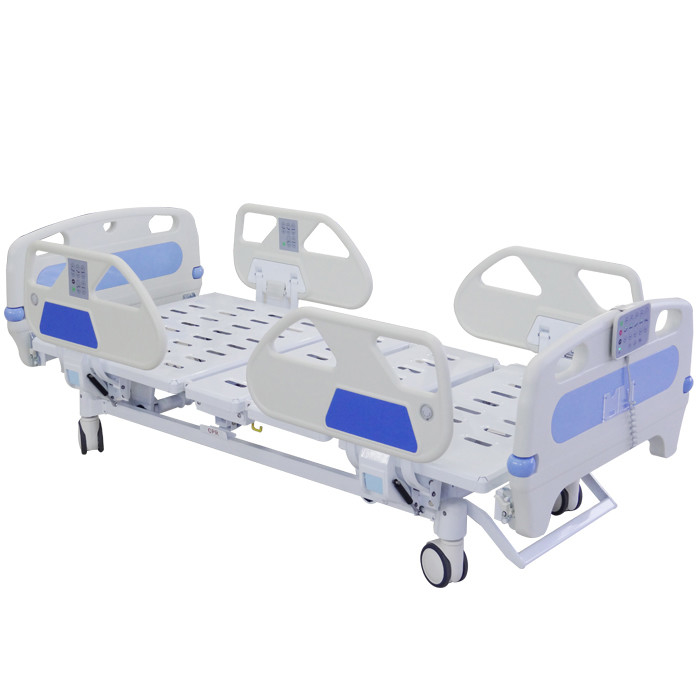

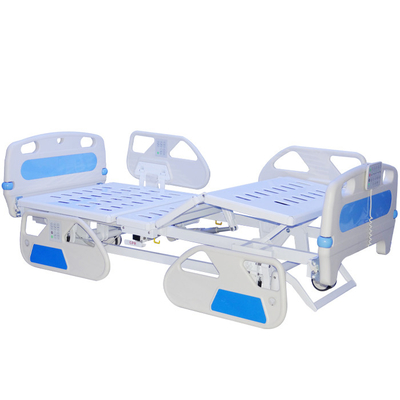

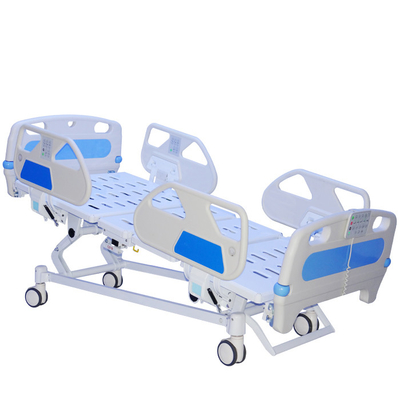

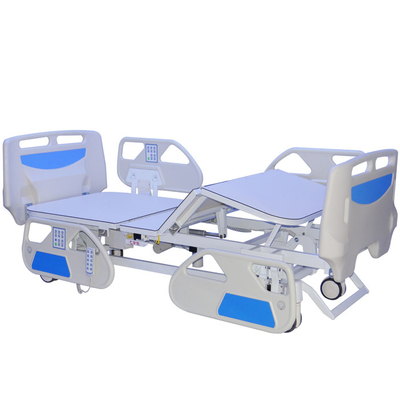

2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use

2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use

2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use
  • 2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use
  • 2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use
  • 2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use
  • 2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use
Product Details:
Place of Origin: China
Brand Name: Dinggong
Certification: CE,ISO
Model Number: DG-A02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $ 500~$ 620/Piece
Packaging Details: Carton
Delivery Time: 15-50 work days
Payment Terms: T/T
Supply Ability: 100 Pieces per Month
Contact Now
Detailed Product Description
Product Name: Five Functions Electric Hospital Bed Type: Hospital Furniture
Function: 5 Functions Size: 2200(±50)mm×950(±50)mm×380-850(±50)mm
Color: White And Blue Bed Board: Stainless Steel
Head And Foot Board: ABS Application: Emergency Rescue
Feature: Multifunctional Adjustment, Comfortable, Firm, Silent Weight Capacity: 240KGS
Warranty: 5 Years
Highlight:

2150MM Electric Hospital Bed

,

250KGS capacity Electric Hospital Bed

,

multifunctional electric air bed for patients iso9001



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use



1. Descriptions:




The bed board adopts steel slats with a thickness of ≥1.5mm, and the four frames of the back board are reinforced with sheet metal to enhance the bearing capacity. The metal surface is electrostatically sprayed with epoxy resin powder. In order to achieve the purpose of antirust and antibacterial on the surface of the workpiece, the workpiece is required to undergo processes such as acid derusting, alkali neutralization, degreasing, water rinsing, phosphating, electrophoresis, drying, and spraying. Standards of use: When the patient goes to bed, turns over, and the bed panel lifts, there is no sound, and the bed panel is firm and firm without loosening;

Adopt ABS headboard and tailboard, curved and smooth design, beautiful and elegant, with hidden locking device, stable and reliable, easy to disassemble, there is a slot for patient information card on the outside of the tailboard; universal wheels Four double-piece plastic-coated wheels, the bed can rotate Flexible and noiseless; diameter: ≥125mm, with locking, universal and directional central control locking devices. Equipped with anti-collision device. The ABS four-leaf flip guardrail is durable, not easy to corrode, and not easy to age.
There is no noise during operation, and there is a guardrail control flip switch, and the guardrail can be adjusted and flipped with one key. The guardrail has a pad operation button function. Infusion stand jacks Infusion stand jacks (two on the left and two on the right), which are easy to push out for inspection and use. There is a drainage hook on each side of the inner side of the bed frame, and a sundry rack is equipped at the bottom of the bed;
material
Bed frames, bed boards, screws, cranks, bed legs, etc. require a smooth surface, strong and durable;
Mattress
(1) Specifications: matched with the hospital bed, ≧6mm thick;

(2) Material: ① 4 cm sponge, 4 cm brown, high-density brown sheet, high-temperature and high-pressure treatment, high-density elastic sponge, anti-insect treatment, prevent deformation, breathable, moisture-permeable, mildew-proof, wear-resistant, with The zipper can be flexibly disassembled; ② Outsourcing high-quality waterproof cloth, the liquid does not penetrate the surface layer, easy to wipe, and has air permeability;

(3) It can be bent according to the lifting and lowering of the back, feet and legs of the bed;




2. Specification:


External(L*W*H) 2200(±50mm)×950(±50mm)×380-850(±50mm)mm
Height Adjustment 46~72 cm
Mattress Platform 195*90 cm
Safe Working Load 240 kg
Back-rest Adjustment 0~75 °
Knee-rest Adjustment 0~40 °
Trendelenburg 0~12 °
Reverse Trendelenburg 0~12 °
Voltage and frequency               100~240 V - 50/60 Hz
Linear Motor 4 pcs
5'' Double Side Castors, Central Locking System 4 pcs
ABS Side Rail Extra Height 1 set
ABS Bed Ends with Safe Lock 1 set
IV Pole 1 pc
IV Pole Prevision 4 pcs
Drainage Hook 4 pcs



3. Image details:


2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 0

Steels| Painting
Baosteel from Fortune Global 500 11 Process epoxy painting, ASTM testing

anti-baterial, paint thickness0.12 mm, brightness 60°, paint can resist 50kg impact.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 1

Plastic
Environmental plastic can be sterilized in 100°C, tensile upto 30MPa Virgin


ABS material



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 2

Bumper Cover
Reduce the impact of the collision, safe and slinky.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 3

Electric System
Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with lifetime

20,000 times movement.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 4

Side Rail
Full ABS material,tuck away side rail with built-in controller. From top of the

guardrail to bed surface is about 345mm, more height provides better protection

for patient.
Buttom can endure 100,000times press, buffer, built-in angle indicator.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 5

Head & Foot Board
Full ABS material, Buttom can endure 100,000times press Head and foot

board can be reversable.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 6

Bed Surface
Stamping forming platform, smooth surface no welding scar, bearing 250 kg
load. Option ABS platform and resin X-ray translucent platform.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 7

Virgin ABS
Environmental plastic can be sterilized in 100℃, tensile upto 30MPa.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 8

Angle indicator
Patented angle indicator.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 9

Design
Mordern design.Use new and strong inserted ABS fire-proof panel avoid off.
Easy to be cleaned and installed. Net weight over 3.6kg.



2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 10

Platform
Stamping forming platform, smooth surface no welding scar,bearing 135KG
load. Option resin X-ray translucent platform.







2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 11





2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 12





2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 13





2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 14





4. Company Profile


2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 15

Certifications


2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 16

Product Packaging


2150MM 250KGS Five Functions Electric Hospital Bed For Patients ICU Use 17

5. FAQ


Q1. Are you a factory or trading company?
A: We are a Professional Manufacture for Hospital Furniture. We have two companies, one is Medical King in countryside that manufacture products, and another one is Dinggong Medical in downtown that is for trading.

Q2. Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang, 1 hour far away driving from Shanghai.

Q3. What is your trading term?
A: 1. Payment term: T/T 50% deposit (at least) after order confirmed, 50% balance paid against bill of lading, or L/C , or Western Union for small amount .
2. Lead time: normally in 30 days after deposit received.
3. Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. Shipping port: Shanghai, China
5. Discounts: We offer discount for big quantity.

Q4: How to purchase your product?
A: Quotation → PI → Confirm PI → Arrange 50% deposit (at least) →Producing →QC inspect → Pay balance → Shipping
