| Place of Origin: | Jiangsu, China |
| Brand Name: | Dinggong |
| Certification: | ISO,CE |
| Model Number: | DG-A03 |
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | $290.00 - $270.00/Pieces 20-49 Pieces |
| Payment Terms: | T/T |
| Material: | Metal | Warranty: | 1 Year |
|---|---|---|---|
| After-sale Service: | Free Spare Parts | Name: | Manual Hospital Beds |
| High Light: | 3 function Manual Hospital Beds,Manual Hospital Beds 80deg,heavy duty hospital bed patient nursing |
||

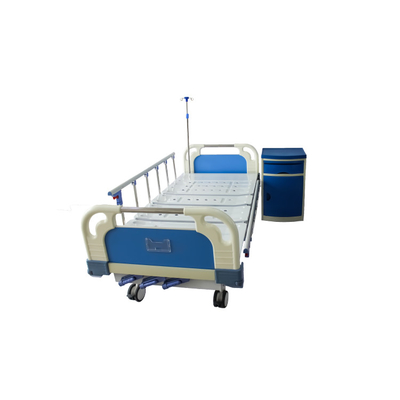

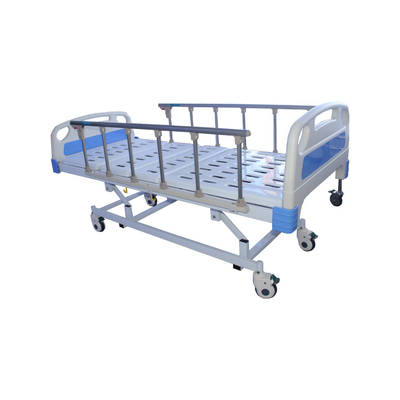

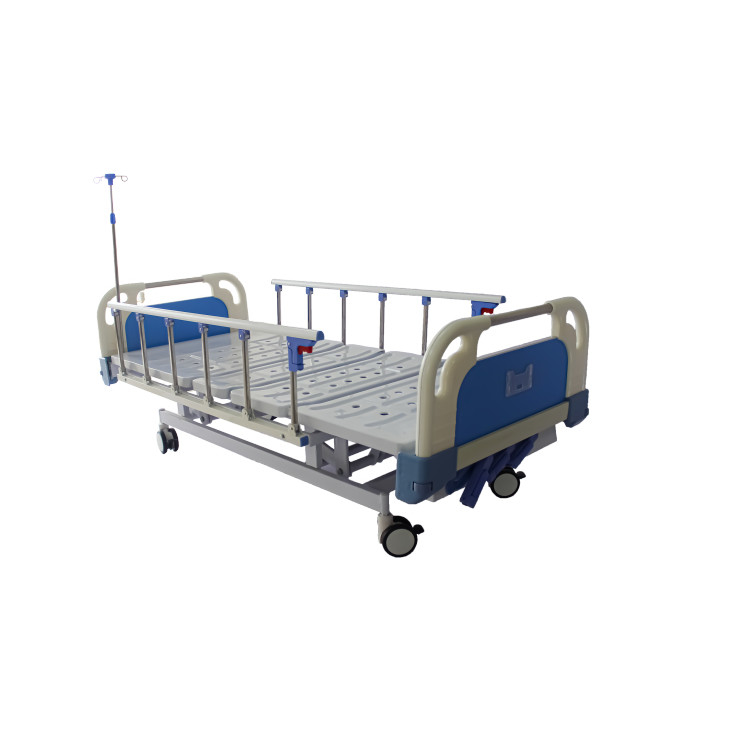

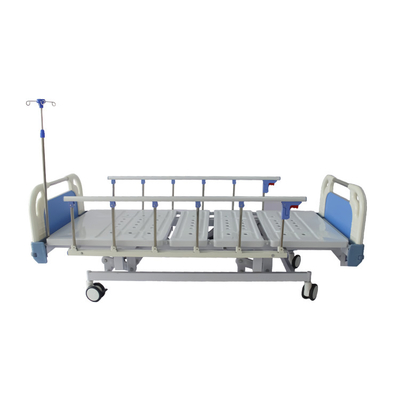

China Manufacturer Three Function Nursing Bed Electric Hospital Bed|
Name
|
Requirements
|
|
Specification
|
2200(±50mm)×970(±50mm)×350-800(±50mm)mm;
|
|
Bed frame
|
It is welded with a 40×80×1.2mm rectangular tube, the surface is flat, and there is no trace of welding seam;
|
|
|
The bed board is made of steel strips with a thickness of ≥1.0mm, and the four frames of the back board are reinforced with sheet metal to enhance the carrying capacity. The metal surface is electrostatically sprayed with epoxy powder. In order to achieve the
purpose of anti-rust and antibacterial on the surface of the workpiece, the workpiece is required to undergo acid rust removal, alkali neutralization, degreasing, water rinsing, phosphating, electrophoresis, drying, spraying and other processes. Standard of use: The bed panel has no sound when the patient goes to bed, turns over and the bed panel is raised and lowered, and is firm and reliable without looseness;
|
|
Bed body
|
Load ≥240kg, cold-rolled steel plate, double-layer stable structure, strong and durable; anti-collision angles are installed on the outside or four corners of the bed;
|
|
Folded
|
Back folding≥0-75°Leg folding≥0-40°Overall lifting 35-80°
|
|
|
Adopt ABS head and foot board, smooth arc design, beautiful and generous, with hidden locking device, stable and reliable, easy to disassemble, there is patient information card slot on the outside of the foot board;
|
|
|

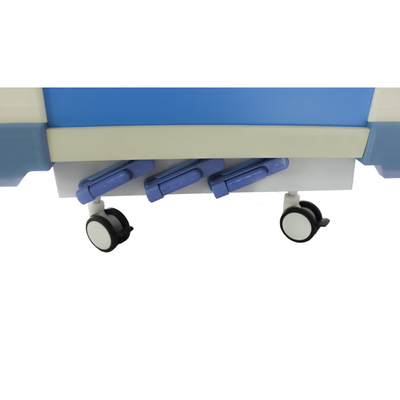

The built-in crank handle is equipped with ABS stacked hand crank. The screw rod is made of 45# steel and is formed by a special rolling machine. The wire mouth is smooth and easy to operate. The mother wire is made of ductile iron. The screw rod has two directions. Neutral protection device;
|
|
Universal Wheel
|
Four custom-made 5-inch double-sided polyurethane bidirectional brake universal wheels that have passed Pony's test, and the bed rotates flexibly and without noise;
|
|
|
Stainless steel folding guardrail, hardened and strengthened (high strength, metal lower seat), combined with movable side, convenient for maintenance, guardrail switch is placed in the direction of the bed, safe, reliable, solid and durable; total length is about 1450mm, height when unfolded ≥380mm. Retractable and lifted freely, durable, not easy to deform, smooth and beautiful, easy to clean, the guardrail has six levels;
|
|
|
There are two infusion stand sockets (two on the left and two on the right), which are easy to push out for inspection and use. There is a drainage hook on both sides of the inner side of the bed frame, and a sundries rack is provided at the bottom of the bed;
|
|
Material
|
The surface of the bed frame, bed board, screw, crank, bed leg, etc. must be smooth and durable;
|
|
|
(1) Specifications: matched with hospital beds, ≧6mm thick;
(2) Material: ① 4 cm sponge, 4 cm brown, high-density brown flakes, processed by high temperature and high pressure, high-density elastic sponge, pest-proof treatment to prevent deformation, breathable, moisture-permeable, mildew-proof and wear-resistant, with The zipper can be detached flexibly; ②Outsourcing high-quality waterproof cloth, liquid does not penetrate the surface, easy to wipe, and breathable;
(3) It can be bent according to the lifting of the back, feet and legs of the bed;
|
|
Motor
|
Adopt domestic motor
|
