Place of Origin: | Jiangsu, China |
Brand Name: | Dinggong |
Certification: | ISO,CE |
Model Number: | DG-A10 |
Minimum Order Quantity: | 20 Pieces |
---|---|
Price: | $120.00 - $ 106.00 /Pieces 20-49 Pieces |
Packaging Details: | Carton |
Supply Ability: | 150 Piece/Pieces per Month |
Material: | Metal | Warranty: | 1 Year |
---|---|---|---|
After-sale Service: | Online Technical Support | Port: | Shanghai |
High Light: | three cranks manual medical bed,manual medical bed 80MM Frame,manual icu bed 159kg Three Cranks |
Name
|
requirements
|
Specifications
|
2200(±50mm)×970(±50mm)×500(±50mm)mm;
|
Bed frame
|
40 × 80 × 1.2mm rectangular pipe is used for welding, with smooth surface and no weld trace;
|
|
The bed board is made of steel strips with a thickness of more than 1.0 mm, and the back four frames are reinforced with sheet metal to enhance the bearing capacity. The surface of the metal is electrostatically sprayed with epoxy resin powder. In order to achieve the purpose of anti rust and anti bacteria on the surface of the workpiece, the workpiece is required to undergo acid rust removal, alkali neutralization, degreasing, water rinsing, phosphating, electrophoresis, drying, spraying and other processes. Use standard: the bed panel is sound free, firm and free from looseness in the process of bed, turning over and bed panel lifting;
|
Bed body
|

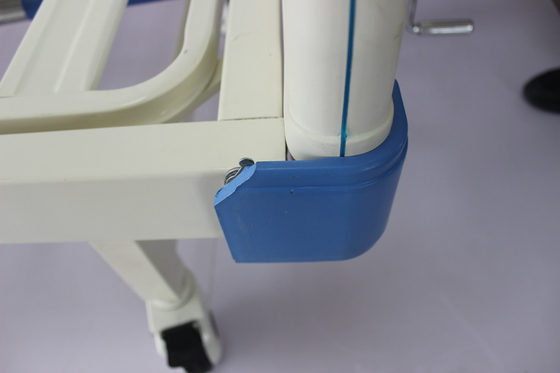

Load ≥ 240kg, cold rolled steel plate, double-layer stable structure, firm and durable; anti collision angle is installed on the outside or four corners of the bed;
|
Fold
|
Back fold ≥ 0-75 degrees
|
Headboard and tailboard
|
ABS headboard and tailboard are adopted, with smooth arc shape design, beautiful appearance, hidden locking device, stable and reliable, easy to remove, and patient information card slot on the outside of tailboard;
|
Handle
|
The built-in crank handle is equipped with ABS stacked handle. The screw rod is made of 45 ᦇ steel and extruded by a special wire rolling machine. The screw mouth is smooth and easy to operate. The mother wire is made of ductile iron. The screw rod has a two-way neutral gear protection device;
|
Universal wheel
|
Four customized 5-inch double-sided polyurethane two-way braking universal wheels have passed the test of purney, and the sickbed can rotate flexibly without noise;
|

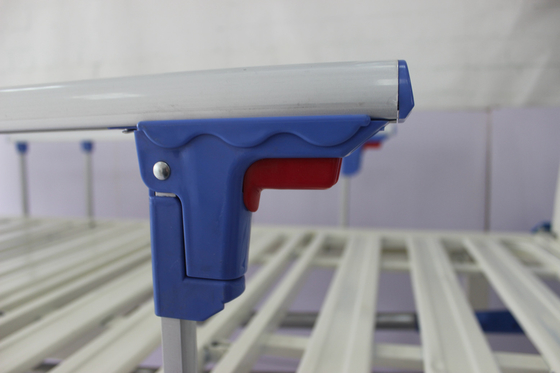

Guardrail
|
Stainless steel folding guardrail, hardened and strengthened (high strength, metal lower seat), movable side combination, convenient maintenance, the guardrail switch is placed in the direction of the head of the bed, safe and reliable, solid and durable; the total length is about 1450mm, and the height when unfolding is ≥ 380mm. It is easy to retract, release and lift,
durable, not easy to deform, smooth and beautiful, easy to clean, and the guardrail is of six gears; |
Infusion rack jack
|
There are two infusion rack jacks (two on the left and two on the right), which are easy to push out for inspection. There is a drainage hook on both sides of the inner side of the bed frame, and there is a sundry rack at the bottom of the bed;
|
Texture of material
|
The surface of bed frame, bed board, screw, handle and bed leg should be smooth, firm and durable;
|
|
(1) Specification: matching with sickbed, ≥ 6mm thick;
(2) Materials: ① 4cm sponge, 4cm brown, high-density Brown sheet, treated by high temperature and high pressure, high-density elastic sponge, treated by insect proof, to prevent deformation, with air permeability, moisture permeability, mildew resistance, wear resistance, with zipper can be removed flexibly; ② wrapped with high-quality waterproof cloth, liquid impermeable surface, easy to wipe, with air permeability; (3) It can be bent according to the back, feet and legs of the bed; |
