86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care

Name: 86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
Brand: Jiangsu Dinggong Medical Equipment Co., Ltd.
SKU: MDK-ZY02
Availability: InStock

Brand Name:	Dinggong
Model Number:	MDK-ZY02
Price:	$1,000.00 - $1,200.00/Pieces
Supply Ability:	100 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Power Source:

Hydraulic

Warranty:

1 Year

After-sale Service:

Online Technical Support

Material:

ABS

Shelf Life:

5 Years

Quality Certification:

Instrument Classification:

Class I

Safety Standard:

GB2626-2006

Application:

Emergency Rescue

Size:

193*64*56-86cm

Back Lift:

0-75°

Knee Lift:

0-40°

Certificate:

CE ISO

Color:

Blue

Function:

Medical Care

MOQ:

1PC

Port:

Shanghai

Packaging Details:

Carton

Supply Ability:

100 Piece/Pieces per Month

Highlight:

86cm height adjustment Patient Transfer Trolley

Patient Transfer Trolley 75 deg

shifty transfer assist trolley Medical Care

Product Description

High Quality And Reliable MDK-ZY02 Emergency Hydraulic Patient Transfer Trolley Stretcher

Product Paramenters

Specification
External(LWH)	2156256-89 cm



Height Adjustment	56~89 cm
Safe Working Load	220 kg
Back-rest Adjustment	0~75 °
Knee-rest Adjustment	0~40 °
Tilt Adjustment	-18 °~18 °

1. Back lifting system: controlled by silent double gas spring, it has strong load-bearing and good stability.

2. High and low lifting system: controlled by imported oil cylinder, the quality is more stable. There are 5 circular cylinder protection sleeves made of ABS injection molding on the outside of the hydraulic cylinder. The overall color is coordinated, which is not easy to accumulate dust and easy to clean.

3. Bed board: made of anti Beite material, with higher strength and no deformation.

4. Frame: made of high-quality steel elbow welding.

5. Guardrail board: PP resin molding guardrail boards on both sides, with a height of 300mm, better safety protection, and can also be fixed horizontally to increase the width of the bed, so that the arms of the infusion patients can be placed comfortably; The utility model has a double safety lock for locking to prevent misoperation and improve the safety of operation.

6. The angle display is set on the guardrail plate to facilitate understanding the rising angle of the back during nursing; There are grooves in the middle of the guardrail plates on both sides to prevent the catheter from sliding and facilitate infusion and drainage. Each side of the guardrail is riveted by 5 die-casting aluminum and 11 stainless steel rivets, with high strength. There is a transparent anti-oxidation layer on the surface of die-casting aluminum to prevent rust spots caused by oxidation reaction for a long time.

7. Casters: four casters with a diameter of 200mm are used for central locking. The four corners of the cart are equipped with caster control system, one foot braking and four wheels are fixed at the same time.

8. The central control brake linkage rod is formed with an integrated round tube to ensure higher strength.

9. Independent central fifth wheel system: control pedals are installed on both sides of the cart, which can move freely when the central fifth wheel is retracted; When in use, it is in the "straight" state (the step bar is 105mm above the ground and has better trafficability), which overcomes the inertial force in the transportation process, effectively controls the forward direction and makes the transportation process safer.

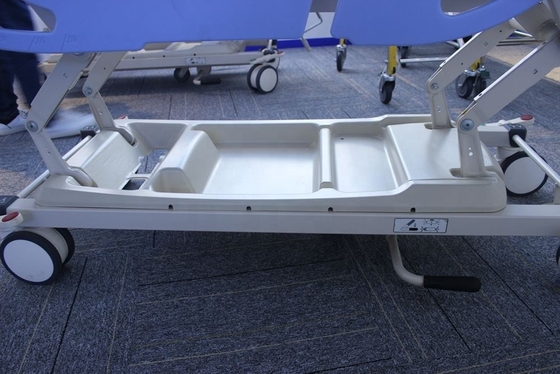

10. There is an integrated tray under the bed, which can place oxygen bottles. It is easy to use, and the tray can bear 10kg.

11. Both sides below the side of the bed are equipped with infusion racks, which can be fixed and collected.

12. Mattress: the surface of the fabric is waterproof, easy to clean, equipped with zipper, the external fabric can be washed, and the 7 cm sponge is comfortable to lie down.

13. There are anti-collision wheels and anti-collision blocks around the bed, which have a beautiful appearance to prevent collision in the implementation process, and can play a protective role.

14. Push handle: a P-shaped push handle is set at the head of the bed, with foaming treatment on the surface, comfortable grip, and can be folded and put down when not in use, so as to facilitate medical staff to take first-aid measures. There is a U-shaped handle at the end of the bed, and the surface is soaked with plastic to improve the grip and beauty.

15. Spray the steel bed frame, conduct electrophoretic treatment after pickling and phosphating, and then spray powder for double-layer spraying, which has better protection.

Configuration list:

1. 1 bed body; 2. 2 integrated guardrails; 3. 4 central control casters; 4. 4 sets of central control locking pedal; 5. One set of the fifth wheel of the center; 6. 2 integral lifting oil cylinders; 7. 2 back lifting air springs; 8. Knee handle 1 8. One integrated bottom tray; 9. 1 infusion stand; 10. 4 jacks of standard infusion stand; 11. 1 WATERPROOF mattress; 12. 1 recording desk (optional);

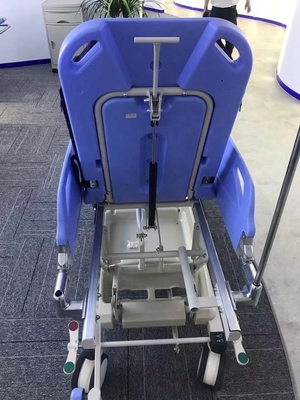

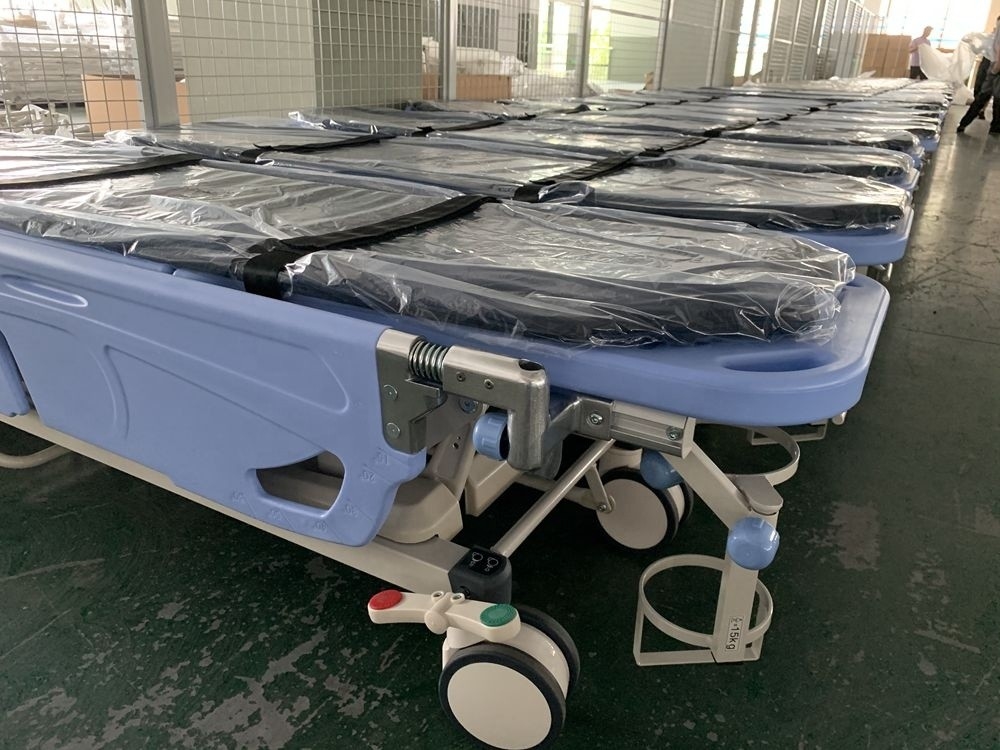

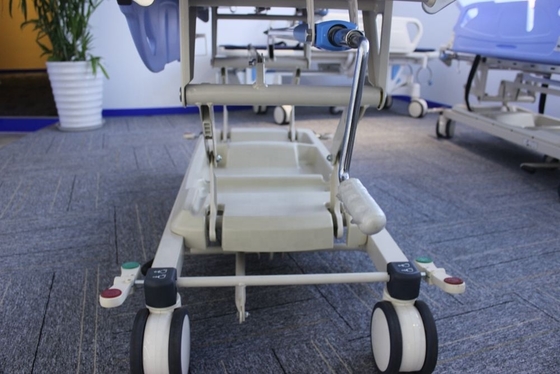

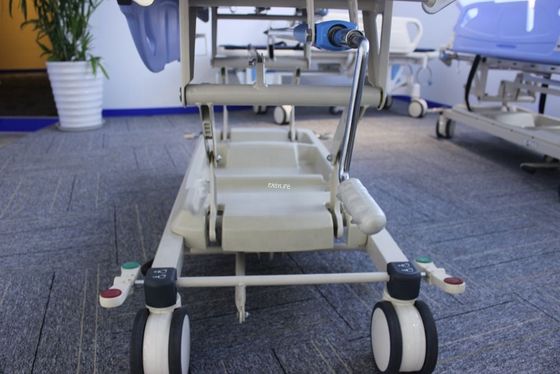

Details Images
