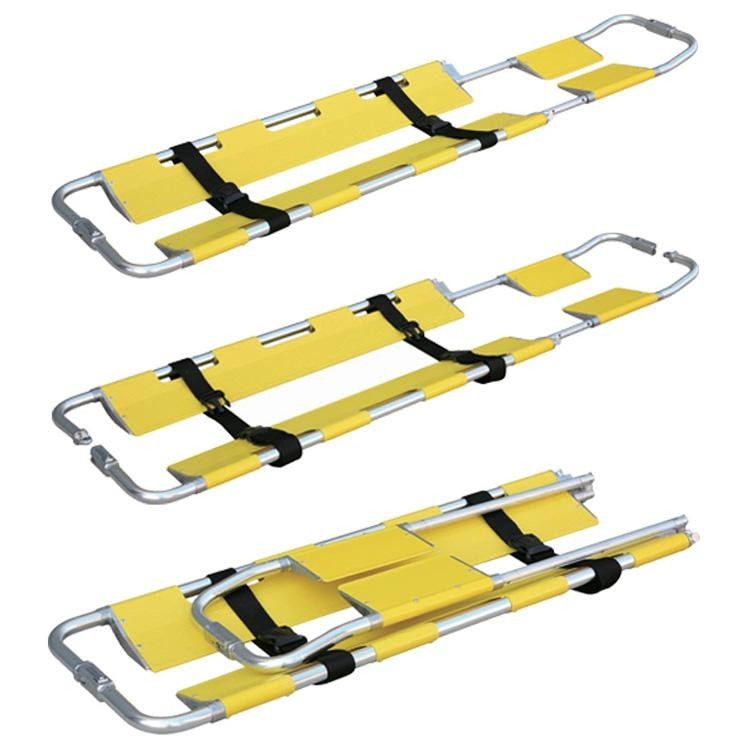

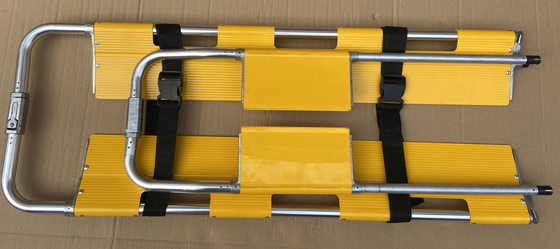

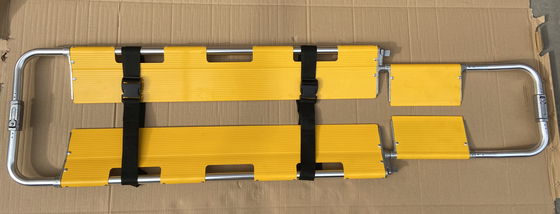

Adjustable Separable Orthopedic Aluminium Scoop Stretcher

• 1, the maximum expansion size (length * width * height) : 210*44*6cm
• 2. Minimum expansion size (length * width * height) : 120*44*9cm
• 3. Carton packing (LENGTH * width * height) : 125*45*7cm
• 4, net weight: 8.5㎏
• 5. Gross weight: 10.2kg
• 6, bearing capacity: ≤159㎏

• 1. This stretcher is a separable first aid stretcher, used for ambulance transfer to orthopedics and seriously injured patients. A hinged clutch device is arranged in the middle of both ends of the stretcher, and the stretcher can be separated into two parts by pressing a button. The stretcher can be removed from under the body by placing the patient in the stretcher or on the operating table, without the need to move the patient.
• 2. The face of the stretcher is concave to make the patient stable.
• 3, the length of the stretcher can be adjusted according to the height of the patient. Stretcher length can be adjusted by pulling out positioning buttons on both sides of the stretcher.
• 4, one end of the stretcher adopts a narrow frame structure, which is convenient for the stretcher to operate in a narrow area.
• 5. After carrying the patient, the stretcher can be transferred to the ambulance stretcher.
• 6. After the stretcher is separated into two parts, pull out the positioning button and it can be folded for storage and carrying.

It can be used to transport the wounded and sick in ambulances, hospitals, sports fields and army field.

When transporting patients, be sure to lock the clutch device and buckle the safety belt to ensure safety.

• 1, always keep clean (including disinfection).
• 2, often check whether there are parts loose phenomenon.

• 1, the stretcher should be stored in a moisture-proof, non-corrosive environment.
• 2. It can be transported by general transportation.

• 1. This stretcher is packed as a whole carton.
• 2. Attachment: Qualification certificate and specification.
