Spray Painted Multi Functional Customized ABS Electric Bed Central Control Brake

Spray Painted Multi Functional Customized ABS Electric Bed Central Control Brake

Spray Painted Multi Functional  Customized ABS Electric Bed  Central Control Brake
  • Spray Painted Multi Functional  Customized ABS Electric Bed  Central Control Brake
Product Details:
Place of Origin: China
Brand Name: MDK
Certification: CE ISO
Model Number: MDK-E5618K
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: Standard export carton packaging 2210*1000*550mm
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 1000 pcs/mouth
Contact Now
Detailed Product Description
Product Name: Electric Hospital Bed With 5 Functions Back-rest Adjustable: 0°~ 75°±5°
Knee-rest Adjustable: 0°~ 45°±5° Body-lifting Adjustable: 46°~72°±5°
Reverse Trendelenburg: 0°~ 15°±5 Size: 2150*970*500mm
Brake Mode: Central Control Brake
High Light:

spray painted ABS Electric Bed

,

Central brake Electric Hospital Bed

,

spray painted Electric Hospital Bed

Customized ABS Electric Bed For Hospital Multi Functional Sickbed



Before using this product, please read this product manual in detail, and operate and use it in strict accordance with the regulations in this product manual.



1. Product introduction



The medical five-function electric hospital bed is mainly composed of a bed panel, a bed frame, a head and foot board, a guardrail, a motor, and a transmission system; the bed surface is made of high-quality steel spray-painted bed surface, and the bed frame and foot are made of rigid steel, which is beautiful durable.

The medical electric hospital bed adopts motor drive to realize the adjustment of the bed posture, which is safe and reliable; the head and foot board are clean and beautiful, free to load and unload, and easy to clean. It is equipped with a locking device to ensure a tight connection with the bed.

This product is suitable for use in general wards of hospitals, medical examinations and home care.

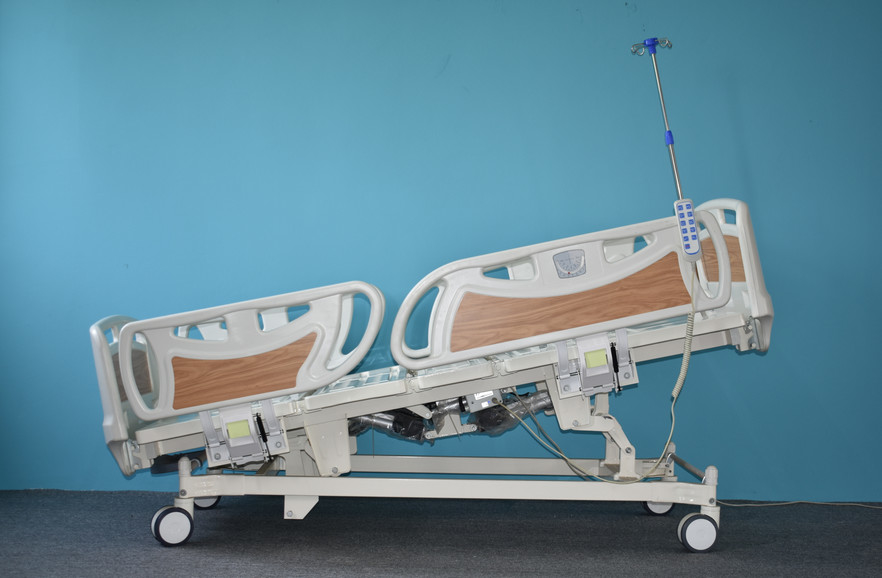

2. Product image





Spray Painted Multi Functional  Customized ABS Electric Bed  Central Control Brake 0





①Headboard ②Guardrail ③Bed panel ④Foot board

⑤Universal casters ⑥Operation screen ⑦Shoe rack





3. Main technical parameters

Project Technical parameters
Size 215*97*50cm
Back-rest adjustable 0°~ 75°±5°
Knee-rest adjustable 0°~ 45°±5°
Body-lifting adjustable 46°~72°±5°
Reverse Trendelenburg 0°~ 15°±5
Brake mode Central control brake


4. Installation and use method



Before using this product, check whether its appearance is smooth, whether the components are complete, and whether the installation and coordination of the components are effective. When using, the appropriate strength should be mastered according to the requirements of the product.



1. After assembling the bed and the bed frame, they should be fixed firmly, and there should be no loose or sliding phenomenon;

2. Hang the connecting pendant of the head and foot board on the connecting pin of the bed, and lock it with the locking device to make the two connect reliably;



3. Before use, check whether the fastening parts are loose, and if there is any looseness, they should be properly tightened;

4. After the bed is installed, the brake should be stepped on; the brake should be released before moving the bed to prevent damage to the casters;



5. Operate the electric handle indicating button to raise or lower the back frame, foot frame, bed board, left and right, etc.; the handle should be hung back to the top of the guardrail after use to avoid bruising.



6. When adjusting the angle of the bed surface, avoid people other than the patient sitting on the bed, so that the bed can work within a reasonable load range.



7. When selecting and using the guardrail, hold the tail of the guardrail with your hand, and then pull it toward the end of the bed, the guardrail will be erected; Will accept it.



5. Packing list

Serial name unit quantity
1 Medical bed piece 1
2 Product manual piece 1
3 Certificate of conformity piece 1
4 ABS damping table board piece 1


6. Matters needing attention and maintenance



1. The hospital bed has been strictly tested before leaving the factory, please do not disassemble, assemble or disassemble by yourself.

2. The hospital bed can be cleaned with a soft, clean cloth, or 75% isopropyl alcohol aqueous solution can be used to obtain a better cleaning effect.

3. The hospital bed should be stored in a dry, non-corrosive gas and well-ventilated environment, and avoid direct sunlight.

4. All parts of the hospital bed should be kept clean.

5. If the fault occurs, it should be repaired by professionals. When the company provides services, please contact the dealer or the company's after-sales service department in time. Do not disassemble and repair at will.
