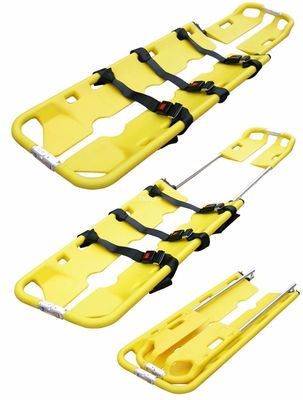

Medical Portable PE Plastic Separable Patient Emergency Scoop Stretcher

Medical Portable PE Plastic Separable Patient Emergency Scoop Stretcher

Medical Portable PE Plastic Separable Patient Emergency Scoop Stretcher
  • Medical Portable PE Plastic Separable Patient Emergency Scoop Stretcher
Product Details:
Place of Origin: Made in China
Brand Name: MDK
Certification: CE ISO
Model Number: MDK-C1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: US$64
Packaging Details: Standard carton packaging 125×45×7cm
Delivery Time: 8days
Payment Terms: T/T
Supply Ability: 1000
Contact Now
Detailed Product Description
The Maximum Expansion Size: 210×44×6cm Minimum Expansion Size: 120×44×9cm
Carton Packing: 125×45×7cm N.W: 8.5㎏
G.W: 10.2kg Bearing Capacity: ≤159㎏
High Light:

PE Emergency Scoop Stretcher

,

hospitals Patient Scoop Stretcher

,

HDPE Patient Scoop Stretcher

Medical Portable PE Plastic Separable Type Patient Transport Emergency Scoop Stretcher



I. Main technical parameters:

* Made of high-strength HDPE.
* Detachable design to transfer fractured and serious patients.
* One hinge device is set in each end of the stretcher used to divide main frame into two pieces.
* Strengthen the patients at original place to reduce the further hurt of the patients.
* Without moving the patient, the operators can operate the stretcher easily.
* Adjust length according to patients' body.
* Equipped with a narrow frame structure of foot.
* Mainly used for hospitals, sports, ambulance carrying patients and wounded person.
* Patients won't feel too hot or too cold on thermally-treated polymer surface.
* The surface is easy to clean and impervious to fluids.



II. use method

1. This stretcher is a separable first aid stretcher, used for ambulance transfer to orthopedics and seriously injured patients. A hinged clutch device is arranged in the middle of both ends of the stretcher, and the stretcher can be separated into two parts by pressing a button. The stretcher can be removed from under the body by placing the patient in the stretcher or on the operating table, without the need to move the patient.

2. The face of the stretcher is concave to make the patient stable.

3, the length of the stretcher can be adjusted according to the height of the patient. Stretcher length can be adjusted by pulling out positioning buttons on both sides of the stretcher.

4, one end of the stretcher adopts a narrow frame structure, which is convenient for the stretcher to operate in a narrow area.

5. After carrying the patient, the stretcher can be transferred to the ambulance stretcher.

6. After the stretcher is separated into two parts, pull out the positioning button and it can be folded for storage and carrying.



III. scope of application:

It can be used to transport the wounded and sick in ambulances, hospitals, sports fields and army field.



IIII. note:

When transporting patients, be sure to lock the clutch device and buckle the safety belt to ensure safety.



V. Maintenance:

1, always keep clean (including disinfection).

2, often check whether there are parts loose phenomenon.

VI. Storage and transportation requirements:

1, the stretcher should be stored in a moisture-proof, non-corrosive environment.

2. It can be transported by general transportation.

VII. Packaging and Accessories:

1. This stretcher is packed as a whole carton.

2. Attachment: Qualification certificate and specification.
